HST-88007DR, HST-88007DR-GROUP - 1000 BASE-TX VoIP MAGNETIC MODULE

HST-88007DR Description

® A Leading Supplier of Magnetic Components 10/1001000 BASE-TX 1000BASE-TX VoIP MAGNETIC MODULE Part No.HST-88007DR .

HST-88007DR Features

* Compliant with IEEE 802.3at standard for 1000 BASE-T.
* Primary inductance(Lp)350uH min. @ 100KHz,0.1Vrms,8mA.
* Primary inductance(Lp)200uH min. @ 100KHz,0.1Vrms,18mA.

HST-88007DR Applications

* Capacitance between windings (Cww)50pF Max(at 100kHz, 0.1V).
* Leakage Inductance (LL) 0.35uH Max (at 100kHz, 0.1V). DCR 1.2Ω Max.
* Supports 16 pairs of category 5 UTP cable.
* Cable interface for isolation and low common mode emissions.
* Comply with RoHS requirements-whole p

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HST-88007DR, HST-88007DR-GROUP. Please refer to the document for exact specifications by model.

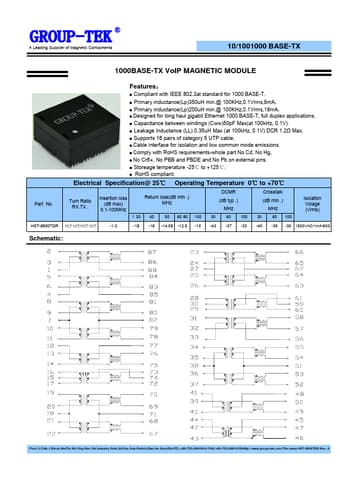

datasheet Preview Page 2

Datasheet Details

Part number
HST-88007DR, HST-88007DR-GROUP
Manufacturer
GROUP-TEK
File Size
161.33 KB
Datasheet
HST-88007DR-GROUP-TEK.pdf
Description
1000 BASE-TX VoIP MAGNETIC MODULE
Note
This datasheet PDF includes multiple part numbers: HST-88007DR, HST-88007DR-GROUP.
Please refer to the document for exact specifications by model.
