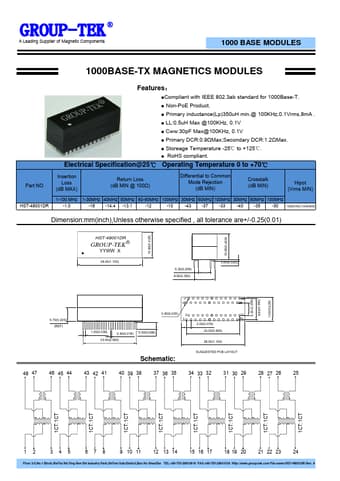

HST-48001DR, HST-48001DR-GROUP 1000 BASE-TX MAGNETICS MODULES

HST-48001DR Description

® A Leading Supplier of Magnetic Components 110000/010B0A0SBEAMSEODMUOLDEUSLES 1000BASE-TX MAGNETICS MODULES .

HST-48001DR Features

* Compliant with IEEE 802.3ab standard for 1000Base-T.
* Non-PoE Product.
* Primary inductance(Lp)350uH min. @ 100KHz,0.1Vrms,8mA .
* LL:0.5uH Max @100KHz, 0.1V
* Cww:30pF Max@100KHz, 0.1V
* Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
* Storeage Temperature -25℃ to +125℃.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HST-48001DR, HST-48001DR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
HST-48001DR, HST-48001DR-GROUP
Manufacturer
GROUP-TEK
File Size
135.26 KB
Datasheet
HST-48001DR-GROUP-TEK.pdf
Description
1000 BASE-TX MAGNETICS MODULES
Note
This datasheet PDF includes multiple part numbers: HST-48001DR, HST-48001DR-GROUP.
Please refer to the document for exact specifications by model.
