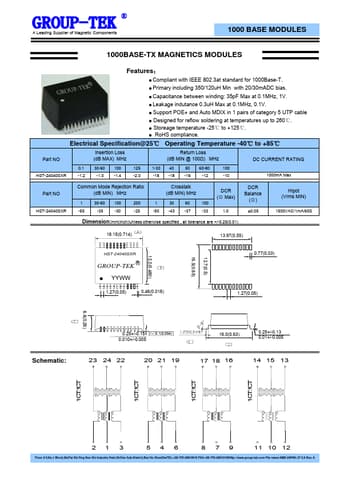

HST-24040SXR 1000 BASE-TX MAGNETICS MODULES

HST-24040SXR Features

* Compliant with IEEE 802.3at standard for 1000Base-T.

* Primary including 350/120uH Min with 20/30mADC bias.

* Capacitance between winding: 35pF Max at 0.1MHz, 1V.

* Leakage indutance 0.3uH Max at 0.1MHz, 0.1V.

* Support POE+ and Auto MDIX in 1 pairs of category 5 UTP cable
