HST-24025SAR, HST-24025SAR-GROUP - 10G BASE MODULES

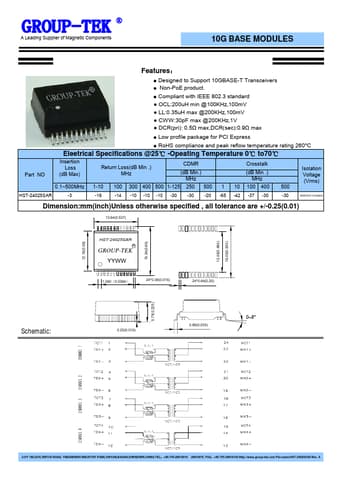

HST-24025SAR Description

® A Leading Supplier of Magnetic Components 10G BASE MODULES .

HST-24025SAR Features

* Designed to Support 10GBASE-T Transceivers
* Non-PoE product.
* Compliant with IEEE 802.3 standard
* OCL:200uH min @100KHz,100mV
* LL:0.35uH max @200KHz,100mV
* CWW:30pF max @200KHz,1V
* DCR(pri): 0.5Ω max,DCR(sec):0.9Ω max
* Low profile package for PCI Express

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HST-24025SAR, HST-24025SAR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
HST-24025SAR, HST-24025SAR-GROUP
Manufacturer
GROUP-TEK
File Size
116.27 KB
Datasheet
HST-24025SAR-GROUP-TEK.pdf
Description
10G BASE MODULES
Note
This datasheet PDF includes multiple part numbers: HST-24025SAR, HST-24025SAR-GROUP.
Please refer to the document for exact specifications by model.
