HST-0042S - 10/100BASE TRANSFORMER

Download the HST-0042S datasheet PDF. This datasheet also covers the HST-0041S-GROUP variant, as both devices belong to the same 10/100base transformer family and are provided as variant models within a single manufacturer datasheet.

Features

  • Designed to meet IEEE 802.3 requirements.
  • Primary inductance(Lp)350uH min. @ 100KHz 0.1Vrms 8mA.
  • Hipot:1500Vrms Electrical Specification@25℃ Operating Temperature 0 to 70℃ Part No. Turns Ratio Insertion Ioss (dB max) Return Ioss (dB typical . ) MHz Differential to Common Mode Rejection (dB typ) Crosstalk Schematic TX RX 100KHz-100MHz 30MHz 60MHz 80MHz 30MHz 50MHz 100MHz 30MHz 60MHz 100MHz HST-0041S 1:1 1:1 1.1 -20 -14 -11.5 -42 -37 -33 -45 -40 -35 A HST-0042S 1:1 1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HST-0041S-GROUP-TEK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HST-0042S
Manufacturer GROUP-TEK
File Size 150.43 KB
Description 10/100BASE TRANSFORMER
Datasheet download datasheet HST-0042S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HST-0041SAR 10/100Base-T TRANSFORMER ETC
HST-1025D 10/100BASE-TX TRANSFORMER MODULES ETC
HST-1026D 10/100BASE-TX TRANSFORMER MODULES ETC
HST-1027D 10/100BASE-TX TRANSFORMER MODULES ETC
HST-1027S 10/100BASE-TX TRANSFORMER MODULES ETC

Other Datasheets by GROUP-TEK

Part Number Description
HST-0042SCR 10/100 BASE-TX TRANSFORMER
HST-0042SXAR 10/100 BASE-TX TRANSFORMER
HST-0041S 10/100BASE TRANSFORMER
HST-0041SAR 10/100 BASE-TX TRANSFORMER
HST-0041SXAR 10/100 BASE-TX TRANSFORMER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

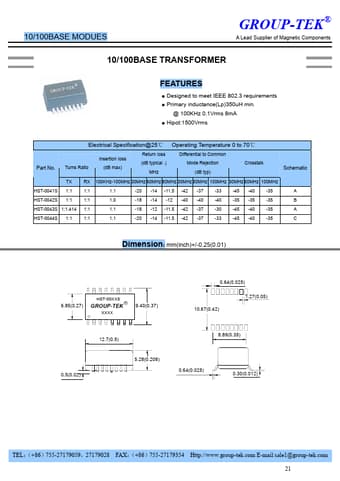

10/100BASE MODUES GROUP-TEK® A Lead Supplier of Magnetic Components 10/100BASE TRANSFORMER FEATURES ● Designed to meet IEEE 802.3 requirements ● Primary inductance(Lp)350uH min. @ 100KHz 0.1Vrms 8mA ● Hipot:1500Vrms Electrical Specification@25℃ Operating Temperature 0 to 70℃ Part No. Turns Ratio Insertion Ioss (dB max) Return Ioss (dB typical .) MHz Differential to Common Mode Rejection (dB typ) Crosstalk Schematic TX RX 100KHz-100MHz 30MHz 60MHz 80MHz 30MHz 50MHz 100MHz 30MHz 60MHz 100MHz HST-0041S 1:1 1:1 1.1 -20 -14 -11.5 -42 -37 -33 -45 -40 -35 A HST-0042S 1:1 1:1 1.0 -18 -14 -12 -40 -40 -40 -35 -35 -35 B HST-0043S 1:1.414 1:1 1.1 -18 -12 -11.5 -42 -37 -30 -45 -40 -35 A HST-0044S 1:1 1:1 1.1 -20 -14 -11.5 -42 -37 -33 -45 -40 -35 C Dimension: mm(inch)+/-0.
