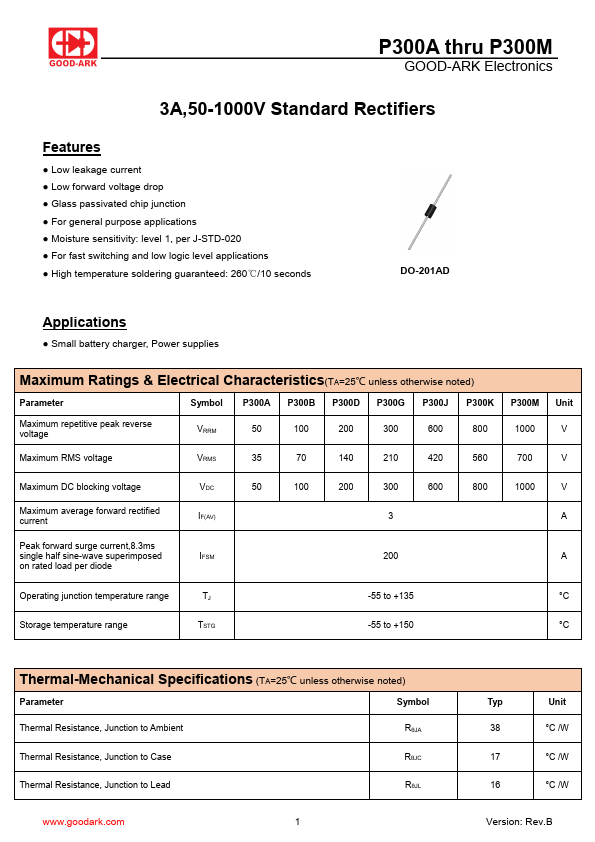

P300A thru P300M
GOOD-ARK Electronics
3A,50-1000V Standard Rectifiers
Features
● Low leakage current ● Low forward voltage drop ● Glass passivated chip junction ● For general purpose applications ● Moisture sensitivity: level 1, per J-STD-020 ● For fast switching and low logic level applications ● High temperature soldering guaranteed: 260℃/10 seconds
DO-201AD
Applications
● Small battery charger, Power supplies
Maximum Ratings & Electrical Characteristics(TA=25℃ unless otherwise noted)
Parameter
Symbol P300A P300B P300D P300G P300J P300K P300M Unit
Maximum repetitive peak reverse voltage
VRRM
50
100
200
300
600
800
1000
V
Maximum RMS voltage
VRMS
35
70
140
210
420
560
700
V
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge
