L1N5929, L1N5924 1.5W Zener Diodes

GOODARK

Description

L1N5924 thru L1N5956 GOOD-ARK Electronics 1.5W,9.1 - 200V Zener Diodes .
of changes Released Datasheet Modify document format Update product range Modify package name www.

📥 Download Datasheet

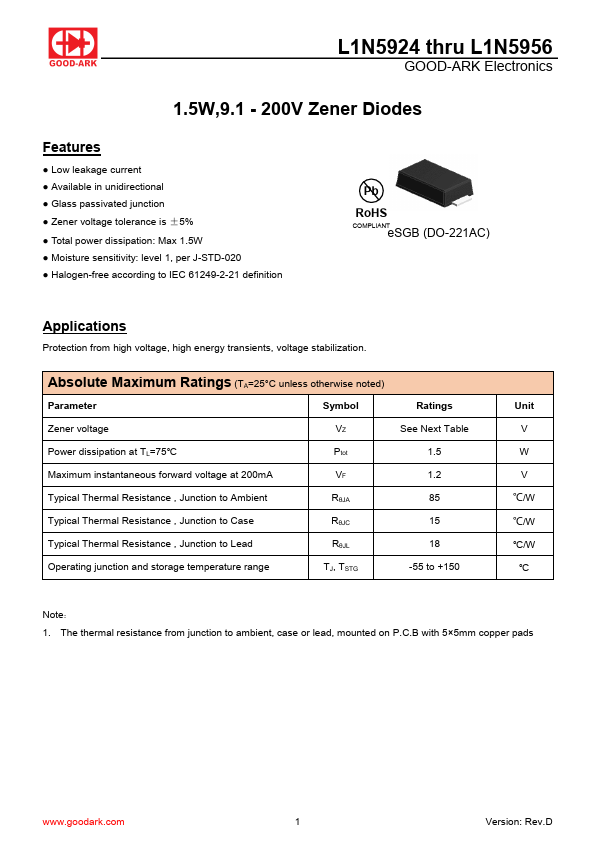

L1N5929 Datasheet Preview — This datasheet PDF includes multiple part numbers: L1N5929, L1N5924. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: L1N5929, L1N5924
Manufacturer: GOODARK
File Size: 590.56 KB
Datasheet: L1N5924-GOODARK.pdf
Description: 1.5W Zener Diodes
Note: This datasheet PDF includes multiple part numbers: L1N5929, L1N5924.
Please refer to the document for exact specifications by model.

Features

* Low leakage current
* Available in unidirectional
* Glass passivated junction
* Zener voltage tolerance is ±5%
* Total power dissipation: Max 1.5W
* Moisture sensitivity: level 1, per J-STD-020
* Halogen-free according to IEC 61249-2-21 definition Pb RoHS COMPLIANT eSG

Applications

* Protection from high voltage, high energy transients, voltage stabilization. Absolute Maximum Ratings (TA=25°C unless otherwise noted) Parameter Symbol Ratings Zener voltage VZ See Next Table Power dissipation at TL=75℃ Ptot 1.5 Maximum instantaneous forward voltage at 200mA VF 1.2 Typ
