1N914

The 1N914 is Fast Switching Diode designed by GOODARK.

Product Overview

GOODARK

Part number	1N914
Manufacturer	GOODARK
File Size	53.00 KB
Description	Fast Switching Diode
Datasheet	1N914-GOODARK.pdf

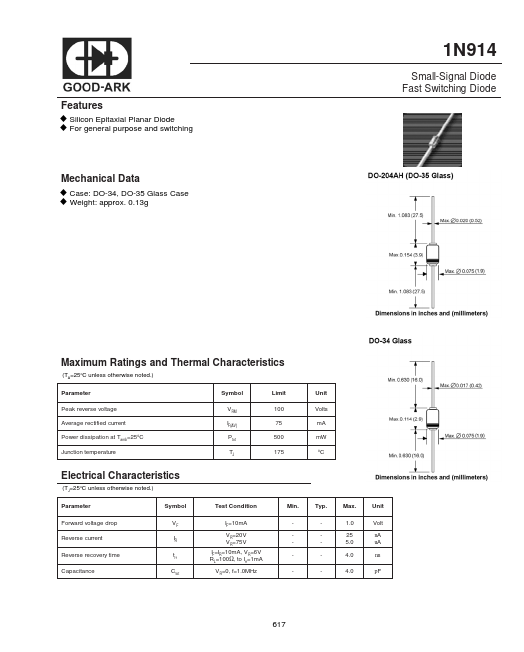

Additional preview pages of the 1N914 datasheet.

Silicon Epitaxial Planar Diode For general purpose and switching Mechanical Data Case: DO-34, DO-35 Glass Case Weight: approx. 0.13g 1N914 Small-Signal Diode Fast Switching Diode Maximum Ratings and Thermal Characteristics (TA=25oC unless otherwise noted. ) Parameter Symbol Limit Unit Peak reverse voltage Average rectified current Power dissipation at Tamb=25oC Junction temperature V 100 Volts RM IF(AV) 75 mA Ptot 500 mW TJ 175 oC Electrical Characteristics (TJ=25oC unless ot.
