UF5408G - GLASS PASSIVATED SUPER FAST RECTIFIER

Download the UF5408G datasheet PDF. This datasheet also covers the UF5400G variant, as both devices belong to the same glass passivated super fast rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low forward voltage drop Hight current capability High reliability High surge current capability Dimensions in inches and (millimeters).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UF5400G-GOODELECTRONIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UF5408G
Manufacturer GOOD ELECTRONIC
File Size 403.80 KB
Description GLASS PASSIVATED SUPER FAST RECTIFIER
Datasheet download datasheet UF5408G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UF5408G GLASS PASSIVATED ULTRA FAST RECTIFIER MIC
UF5408G 3.0A Glass Passivated Ultra Fast Recovery Rectifier TAITRON
UF5408G 3.0 AMP. GLASS PASSIVATED ULTRA FAST RECTIFIERS JGD
UF5408G (UF5400G - UF5408G) 3.0A GLASS PASSIVATED ULTRAFAST DIODE Won-Top Electronics
UF5408G (UF5400G - UF5408G) ULTRAFAST RECTIFIER CHONGQING PINGYANG ELECTRONICS

Other Datasheets by GOOD ELECTRONIC

Part Number Description
UF5400G GLASS PASSIVATED SUPER FAST RECTIFIER
UF5401G GLASS PASSIVATED SUPER FAST RECTIFIER
UF5402G GLASS PASSIVATED SUPER FAST RECTIFIER
UF5404G GLASS PASSIVATED SUPER FAST RECTIFIER
UF5406G GLASS PASSIVATED SUPER FAST RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

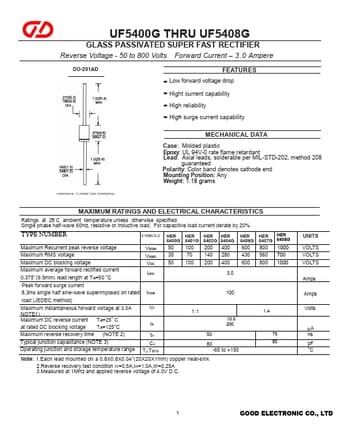

UF5400G THRU UF5408G GLASS PASSIVATED SUPER FAST RECTIFIER Reverse Voltage - 50 to 800 Volts Forward Current – 3.0 Ampere DO-201AD 0) 0 M FEATURES Low forward voltage drop Hight current capability High reliability High surge current capability Dimensions in inches and (millimeters) MECHANICAL DATA Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed Polarity: Color band denotes cathode end Mounting Position: Any Weight: 1.18 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz, resistive or inductive load, For capacitive load current derate by 20%.
