S2JC SURFACE MOUNTGENERAL RECTIFIERS

S2JC Description

0.126(3.20) 0.114(2.90) 0.103(2.62) 0.079(2.06) 0.060(1.52) 0.030(0.76) S2AC THRU S2MC SURFACE MOUNTGENERAL RECTIFIERS Reverse Voltage - 50 to 1000 V.

S2JC Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

S2JC Applications

* Low reverse leakage
* Built-in strain relief,ideal for automated placement
* High forward surge current capability
* High temperature soldering : 260°C /10 seconds at t erminals MECHANICAL DATA Case: JEDEC DO-214AB molded plastic body Terminals: Solder plated, solderable per MIL-ST

📥 Download Datasheet

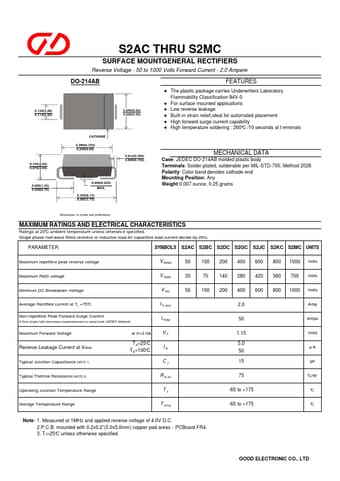

Preview of S2JC PDF
datasheet Preview Page 2

Datasheet Details

Part number
S2JC
Manufacturer
GOOD ELECTRONIC
File Size
82.77 KB
Datasheet
S2JC-GOODELECTRONIC.pdf
Description
SURFACE MOUNTGENERAL RECTIFIERS
