MBR1635B, MBR1620B - D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER

The MBR1635B by GOOD ELECTRONIC is a D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	MBR1635B, MBR1620B
Manufacturer	GOOD ELECTRONIC
File Size	77.10 KB
Description	D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER
Datasheet	MBR1620B-GOODELECTRONIC.pdf
Note	This datasheet PDF includes multiple part numbers: MBR1635B, MBR1620B. Please refer to the document for exact specifications by model.

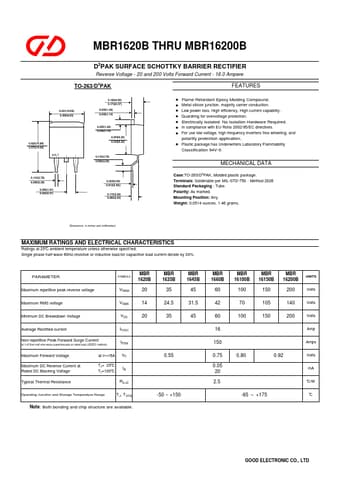

Additional preview pages of the MBR1635B datasheet.

0.421(10.69) 0.380(9.65) 0.625(15.88) 0.575(14.60) pin 1 0.110(2.79) 0.090(2.29) 0.040(1.01) 0.020(0.51) 0.190(4.83) 0.172(4.37) 0.055(1.40) 0.045(1.14) 0.055(1.40) 0.045(1.14) 0.364(9.25) 0.325(8.25) 0.110(2.79) 0.090(2.29) 0.025(0.64) 0.012(0.30)) 0.115(2.92) 0.080(2.03).
Flame Retardant Epoxy Molding Compound.
Metal silicon junction, majority carrier conduction.
Low power loss, High efficiency, High current capability.
Guardring for overvoltage protection.
E.
