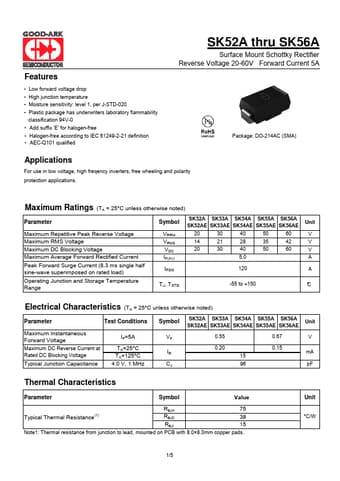

SK55AE - Surface Mount Schottky Rectifier

Download the SK55AE datasheet PDF. This datasheet also covers the SK52A-GOOD variant, as both devices belong to the same surface mount schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low forward voltage drop.
  • High junction temperature.
  • Moisture sensitivity: level 1, per J-STD-020.
  • Plastic package has underwriters laboratory flammability classification 94V-0.
  • Add suffix 'E' for halogen-free.
  • Halogen-free according to IEC 61249-2-21 definition.
  • AEC-Q101 qualified SK52A thru SK56A Surface Mount Schottky Rectifier Reverse Voltage 20-60V Forward Current 5A Package: DO-214AC (SMA).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SK52A-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SK55AE
Manufacturer GOOD-ARK
File Size 451.28 KB
Description Surface Mount Schottky Rectifier
Datasheet download datasheet SK55AE Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SK55A 5.0A SCHOTTKY BARRIER RECTIFIERS WILLAS ELECTRONIC
SK55A SURFACE MOUNT SCHOTTKY BARRIER DIODES SunMate
SK55A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER HIGHWAY TECHNOLOGY
SK55A Surface Mount Schottky Barrier Rectifiers SMD
SK55A-L 5 Amp Schottky Rectifier SHUNRONG

Other Datasheets by GOOD-ARK

Part Number Description
SK55A Surface Mount Schottky Rectifier
SK55B Surface Mount Schottky Rectifier
SK52A Surface Mount Schottky Rectifier
SK52AE Surface Mount Schottky Rectifier
SK52B Surface Mount Schottky Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features • Low forward voltage drop • High junction temperature • Moisture sensitivity: level 1, per J-STD-020 • Plastic package has underwriters laboratory flammability classification 94V-0 • Add suffix 'E' for halogen-free • Halogen-free according to IEC 61249-2-21 definition • AEC-Q101 qualified SK52A thru SK56A Surface Mount Schottky Rectifier Reverse Voltage 20-60V Forward Current 5A Package: DO-214AC (SMA) Applications For use in low voltage, high freqency inverters, free wheeling and polarity protection applications. Maximum Ratings (TA = 25°C unless otherwise noted) Parameter Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current Peak Forward Surge Current (8.
