SK1BE, SK17_GOOD - Surface Mount Schottky Rectifier

Name: SK1BE
SKU: SK1BE-1416691

GOOD-ARK

The SK1BE by GOOD-ARK is a Surface Mount Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	SK1BE, SK17_GOOD
Manufacturer	GOOD-ARK
File Size	494.86 KB
Description	Surface Mount Schottky Rectifier
Datasheet	SK17_GOOD-ARKElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SK1BE, SK17_GOOD. Please refer to the document for exact specifications by model.

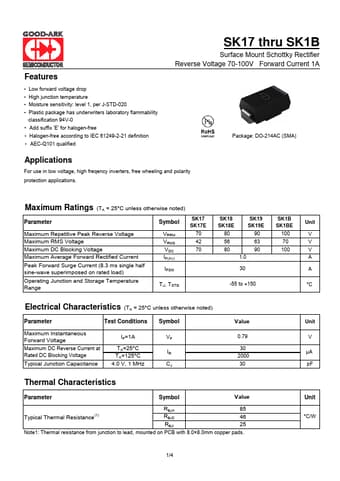

Additional preview pages of the SK1BE datasheet.

Low forward voltage drop.
High junction temperature.
Moisture sensitivity: level 1, per J-STD-020.
Plastic package has underwriters laboratory flammability classification 94V-0.
Add suffix 'E' for halogen-free.
Halogen-free according to IEC 61249-2-21 definition.
AEC-Q101 qualified SK17 thru SK1B Surface Mount Schottky Rectifier Reverse Voltage 70-100V Forward Current 1A Package: DO-214AC (SMA).
