SGP0260SD, SGP0260SD-GOOD - Surface Mount Schottky Rectifier

GOOD-ARK

The SGP0260SD by GOOD-ARK is a Surface Mount Schottky Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

SGP0260SD Surface Mount Schottky Rectifier by GOOD-ARK - Datasheet Preview — Official preview page of the SGP0260SD Surface Mount Schottky Rectifier datasheet (GOOD-ARK).

Datasheet Details

Part number	SGP0260SD, SGP0260SD-GOOD
Manufacturer	GOOD-ARK
File Size	198.83 KB
Description	Surface Mount Schottky Rectifier
Datasheet	SGP0260SD-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: SGP0260SD, SGP0260SD-GOOD. Please refer to the document for exact specifications by model.

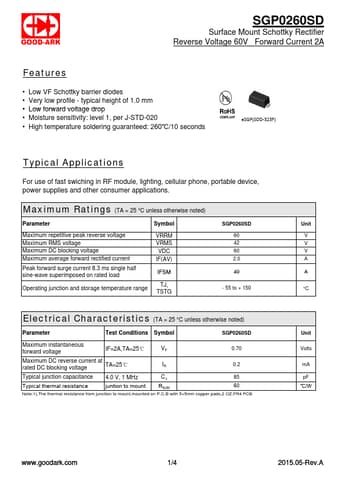

Additional preview pages of the SGP0260SD datasheet.

SGP0260SD Product details

Features

Low VF Schottky barrier diodes.
Very low profile - typical height of 1.0 mm.
Low forward voltage drop.
Moisture sensitivity: level 1, per J-STD-020.
High temperature soldering guaranteed: 260℃/10 seconds eSGP(SOD‐323F) Typical.
