MBR166, MBR163-GOOD Schottky Barrier Rectifiers

MBR166 Description

MBR16xx, MBRF16xx & MBRB16xx Series Reverse Voltage 35 to 60 Volts .

MBR166 Features

* ‹ Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 ‹ Metal silicon junction, majority carrier conduction ‹ Low power loss, high efficiency ‹ Guardring for overvoltage protection ‹ For use in low voltage, high frequency inverters, free wheeling, and polarity protection a

MBR166 Applications

* ‹ High temperature soldering guaranteed: 250°C/10 seconds, 0.25" (6.35mm) from case Schottky Barrier Rectifiers Forward Current 16.0 Amperes Mechanical Data ‹ Case: JEDEC TO-220AC, ITO-220AC & TO-263AB molded plastic body ‹ Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 ‹ Polarit

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR166, MBR163-GOOD. Please refer to the document for exact specifications by model.

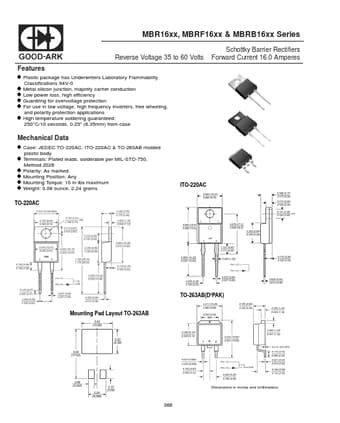

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR166, MBR163-GOOD
Manufacturer
GOOD-ARK
File Size
235.77 KB
Datasheet
MBR163-GOOD-ARK.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR166, MBR163-GOOD.
Please refer to the document for exact specifications by model.
