MB8SA, MB8SA-GOOD Glass Passivated Bridge Rectifiers

MB8SA Description

MB2SA thru MB10SA Glass Passivated Bridge Rectifiers Reverse Voltage 200 to 1000V Forward Current 0.5A .

MB8SA Features

* Glass passivated bridge rectifiers
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low forward voltage drop
* High temperature soldering guaranteed:260°C/10 seconds Mechanical Data
* Case:Molded plastic body over passivated junctions
* Term

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MB8SA, MB8SA-GOOD. Please refer to the document for exact specifications by model.

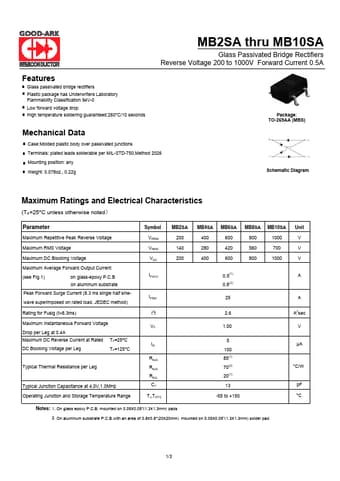

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB8SA, MB8SA-GOOD
Manufacturer
GOOD-ARK
File Size
942.38 KB
Datasheet
MB8SA-GOOD-ARK.pdf
Description
Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: MB8SA, MB8SA-GOOD.
Please refer to the document for exact specifications by model.
