MB28M, MB22M-GOOD - Schottky Bridge Rectifier

Name: MB28M
SKU: MB28M-1373352

GOOD-ARK

The MB28M by GOOD-ARK is a Schottky Bridge Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MB28M, MB22M-GOOD
Manufacturer	GOOD-ARK
File Size	479.51 KB
Description	Schottky Bridge Rectifier
Datasheet	MB22M-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: MB28M, MB22M-GOOD. Please refer to the document for exact specifications by model.

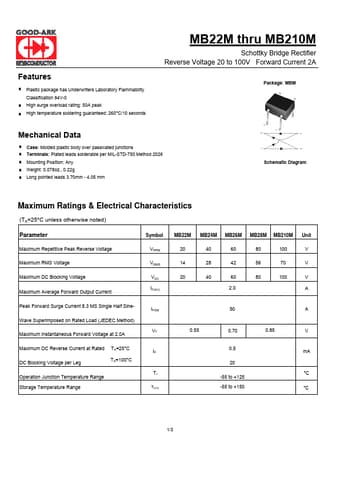

Additional preview pages of the MB28M datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High surge overload rating: 50A peak.
High temperature soldering guaranteed: 260°C/10 seconds MB22M thru MB210M Schottky Bridge Rectifier Reverse Voltage 20 to 100V Forward Current 2A Package: MBM Mechanical Data.
Case: Molded plastic body over passivated junctions.
Terminals: Plated leads solderable per MIL-STD-750 Method 2026.
Mounting Position: Any.
Weight: 0.078oz. , 0.22g.
