LS34A - Surface Mount Schottky Rectifier

Download the LS34A datasheet PDF. This datasheet also covers the LS34A-GOOD variant, as both devices belong to the same surface mount schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Schottky barrier diodes.
  • Low forward voltage drop.
  • Solder dip 260 °C, 10 s.
  • Low profile， typical thickness 1.0mm.
  • Moisture sensitivity: level 1, per J-STD-020 eSGB (SMAF) Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LS34A-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LS34A
Manufacturer GOOD-ARK
File Size 187.06 KB
Description Surface Mount Schottky Rectifier
Datasheet download datasheet LS34A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LS342 MULTIFREQUENCY TO TELEPHONE LINE INTERFACE CIRCUIT SGS
LS34F Surface Mount Low VF Schottky Rectifier Crownpo
LS300A Long Stroke 3 Jaw Chucks with Acme Serrated Master Jaws Royal Workholding
LS301 HIGH PERFORMANCE OPERATIONAL AMPLIFIERS SGS
LS301 Super Beta Micross

Other Datasheets by GOOD-ARK

Part Number Description
LS34AS Surface Mount Schottky Rectifier
LS345A Surface Mount Schottky Rectifier
LS345AS Surface Mount Schottky Rectifier
LS36 Surface Mount Schottky Rectifier
LS36A Surface Mount Schottky Rectifier

Full PDF Text Transcription

Click to expand full text

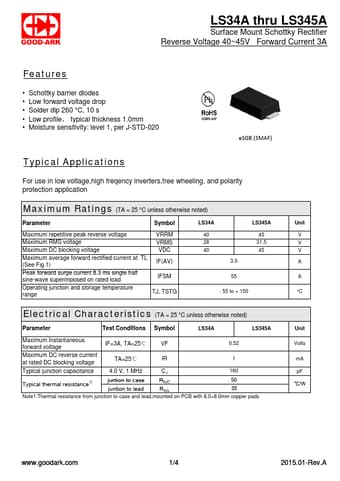

LS34A thru LS345A Surface Mount Schottky Rectifier Reverse Voltage 40~45V Forward Current 3A Features • Schottky barrier diodes • Low forward voltage drop • Solder dip 260 °C, 10 s • Low profile， typical thickness 1.0mm • Moisture sensitivity: level 1, per J-STD-020 eSGB (SMAF) Typical Applications For use in low voltage,high freqency inverters,free wheeling, and polarity protection application Maximum Ratings (TA = 25 °C unless otherwise noted) Parameter Symbol Maximum repetitive peak reverse voltage VRRM Maximum RMS voltage VRMS Maximum DC blocking voltage VDC Maximum average forward rectified current at TL (See Fig.1) IF(AV) Peak forward surge current 8.
