GS8550M, GS8550M-GOOD - PNP Transistor

Name: GS8550M
SKU: GS8550M-1373302

GOOD-ARK

The GS8550M by GOOD-ARK is a PNP Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	GS8550M, GS8550M-GOOD
Manufacturer	GOOD-ARK
File Size	477.11 KB
Description	PNP Transistor
Datasheet	GS8550M-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: GS8550M, GS8550M-GOOD. Please refer to the document for exact specifications by model.

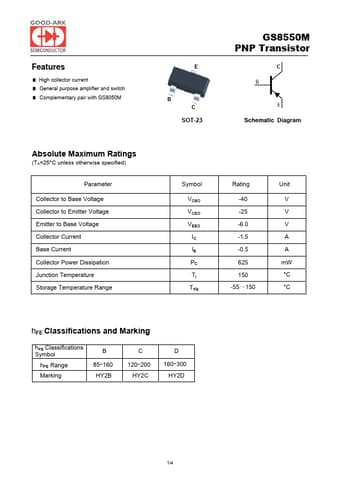

Additional preview pages of the GS8550M datasheet.

High collector current.
General purpose amplifier and switch.
Complementary pair with GS8050M Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range E B C SOT-23 GS 550M PNP Schematic Diagram Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating -40 -25 -6.0 -1.5 -0.5 625 150 -55～150.
