FSL13 - Surface Mount Schottky Rectifier

Download the FSL13 datasheet PDF. This datasheet also covers the FSL13-GOOD variant, as both devices belong to the same surface mount schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low profile - typical height 1.0 mm.
  • Low forward voltage drop.
  • Low leakage current.
  • Moisture sensitivity: level 1, per J-STD-020.
  • AEC-Q101 qualified.
  • High temperature soldering guaranteed: 260°C/10 seconds.
  • Halogen-free according to IEC 61249-2-21 definition Package: eSGA (SOD-123FL).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FSL13-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FSL13
Manufacturer GOOD-ARK
File Size 773.90 KB
Description Surface Mount Schottky Rectifier
Datasheet download datasheet FSL13 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FSL130D N-Channel Power MOSFET Intersil Corporation
FSL130R N-Channel Power MOSFET Intersil Corporation
FSL136HR Green Mode Power Switch ON Semiconductor
FSL136MR Green Mode Fairchild Power Switch Fairchild Semiconductor
FSL137H Green Mode Fairchild Power Switch Fairchild Semiconductor

Other Datasheets by GOOD-ARK

Part Number Description
FSL14 Surface Mount Schottky Rectifier
FSL16 Surface Mount Schottky Rectifier
FSL32 Surface Mount Schottky Rectifier
FSL33 Surface Mount Schottky Rectifier
FSL34 Surface Mount Schottky Rectifier

Full PDF Text Transcription

Click to expand full text

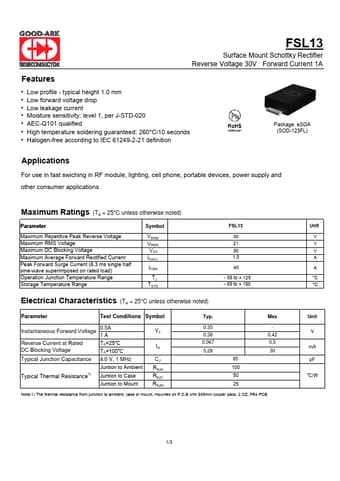

FSL13 Surface Mount Schottky Rectifier Reverse Voltage 30V Forward Current 1A Features • Low profile - typical height 1.0 mm • Low forward voltage drop • Low leakage current • Moisture sensitivity: level 1, per J-STD-020 • AEC-Q101 qualified • High temperature soldering guaranteed: 260°C/10 seconds • Halogen-free according to IEC 61249-2-21 definition Package: eSGA (SOD-123FL) Applications For use in fast swiching in RF module, lighting, cell phone, portable devices, power supply and other consumer applications. Maximum Ratings (TA = 25°C unless otherwise noted) Parameter Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current Peak Forward Surge Current (8.
