FS32, FS32-GOOD Surface Mount Schottky Rectifier

FS32 Description

FS32 thru FS345 Surface Mount Schottky Rectifier Reverse Voltage 20~45V Forward Current 3A .

FS32 Features

* Super Low VF Schottky barrier diodes
* Very low profile - typical height of 1.0 mm
* Low forward voltage drop
* Low leakage current
* Moisture sensitivity: level 1, per J-STD-020
* AEC-Q101 qualified
* High temperature soldering guaranteed:

FS32 Applications

* For use of fast swiching in RF module, lighting, cellular phone, portable device, power supplies and other consumer applications. Maximum Ratings (TA = 25 °C unless otherwise noted) Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average f

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FS32, FS32-GOOD. Please refer to the document for exact specifications by model.

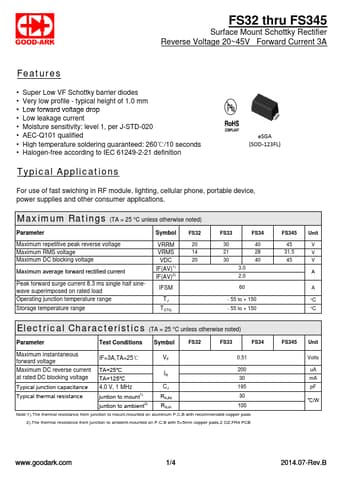

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FS32, FS32-GOOD
Manufacturer
GOOD-ARK
File Size
205.85 KB
Datasheet
FS32-GOOD-ARK.pdf
Description
Surface Mount Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: FS32, FS32-GOOD.
Please refer to the document for exact specifications by model.
