BZX84B5V6 - Surface Mount Zener Diodes

Product Overview

GOOD-ARK

Part number	BZX84B5V6
Manufacturer	GOOD-ARK
File Size	643.80 KB
Description	Surface Mount Zener Diodes
Datasheet	BZX84B5V6 Datasheet
Note	This datasheet PDF includes multiple part numbers: BZX84B5V6, BZX84B2V4-GOOD. Please refer to the document for exact specifications by model.

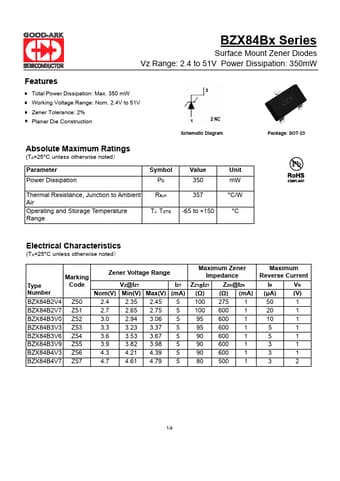

Additional preview pages of the BZX84B5V6 datasheet.

Total Power Dissipation: Max. 350 mW.
Working Voltage Range: Nom. 2.4V to 51V.
Zener Tolerance: 2%.
Planar Die Construction Schematic Diagram Package: SOT-23 Absolute Maximum Ratings (TA=25°C unless otherwise noted） Parameter Power Dissipation Symbol PD Value 350 Thermal Resistance, Junction to Ambient Air Operating and Storage Temperature Range RθJA TJ，TSTG 357 -65 to +150 Unit mW °C/W °C Electrical Characteristics (TA=25°C unless otherwise noted） Marking Type.
