6A1G 6A Standard Rectifiers

GOOD-ARK

6A1G Description

6A05G thru 6A10G GOOD-ARK Electronics 6A,50-1000V Standard Rectifiers .
of changes Released Datasheet Modify document format www.

6A1G Features

* Low leakage current
* Low forward voltage drop
* Glass passivated chip junction

6A1G Applications

* Moisture sensitivity: level 1, per J-STD-020
* For fast switching and low logic level applications
* High temperature soldering guaranteed: 260℃/10 seconds R-6/P600 Applications
* Small battery charger, Power supplies Maximum Ratings & Electrical Characteristics(TA=25℃ unless ot

📥 Download Datasheet

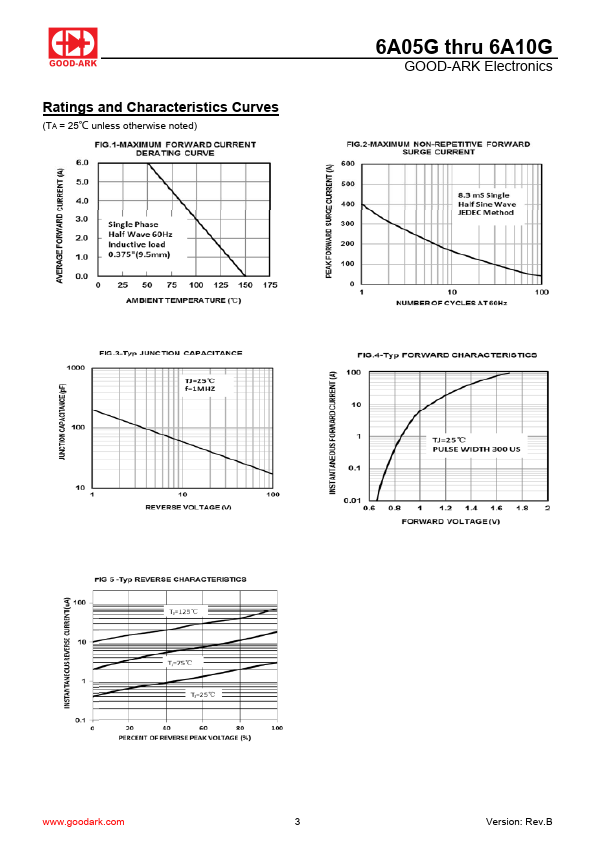

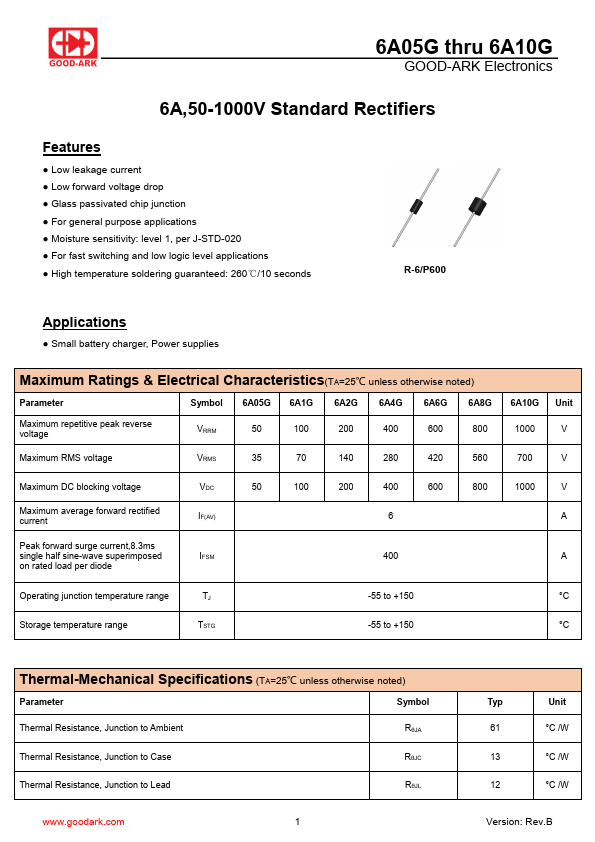

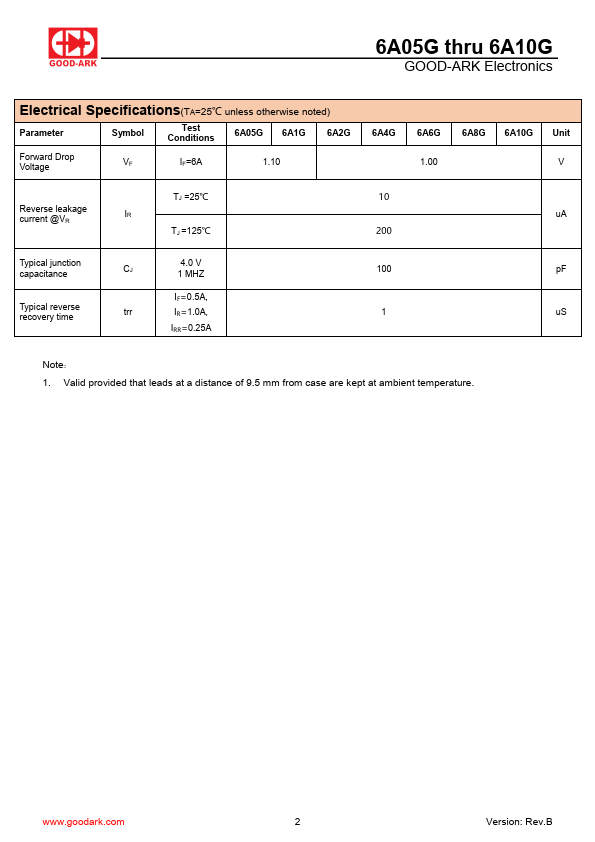

6A1G Datasheet Preview — Preview of 6A1G PDF

Datasheet Details

Part number: 6A1G
Manufacturer: GOOD-ARK
File Size: 521.40 KB
Datasheet: 6A1G-GOODARK.pdf
Description: 6A Standard Rectifiers
