5KP300A - Transient Voltage Suppressor

GOOD-ARK

Download the 5KP300A datasheet PDF. This datasheet also covers the 5KP300A-GOOD variant, as both devices belong to the same transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Key Features

Glass passivated chip.
5000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %.
Low leakage.
Excellent clamping capability.
Fast response time.
RoHS compliant P600 Mechanical Data.
Case: molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Solderable per MIL-STD-202, method 208 guranteed.
Polarity: Color band denotes cathode end except Bipolar.
Mounting position: Any Dimensions in inches.

📥 Download Datasheet

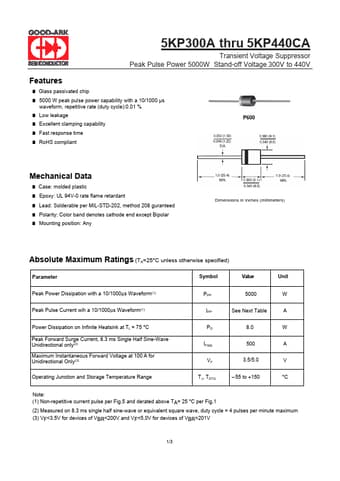

5KP300A transient voltage suppressor by GOOD-ARK - Datasheet Preview — Note: The manufacturer provides a single datasheet file (5KP300A-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	5KP300A
Manufacturer	GOOD-ARK
File Size	339.10 KB
Description	Transient Voltage Suppressor
Datasheet	5KP300A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
5KP300A	5000 Watt Axial Lead TVS	GW
5KP300A	5000W TRANSIENT VOLTAGE SUPPRESSOR	WON-TOP
5KP300A	5kW POWER TVS COMPONENT	Protek Devices
5KP300A	Transient Voltage Suppressors	Eris
5KP300A-G	5000W Transient Voltage Suppressor	Comchip

Other Datasheets by GOOD-ARK

Part Number	Description
5KP300CA	Transient Voltage Suppressor
5KP350A	Transient Voltage Suppressor
5KP350CA	Transient Voltage Suppressor
5KP400A	Transient Voltage Suppressor
5KP400CA	Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

5KP300A thru 5KP440CA Transient Voltage Suppressor Peak Pulse Power 5000W Stand-off Voltage 300V to 440V Features ■ Glass passivated chip ■ 5000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.
