2W10G - Glass Passivated Single-Phase Bridge Rectifiers

Download the 2W10G datasheet PDF. This datasheet also covers the 2W10M-GOOD variant, as both devices belong to the same glass passivated single-phase bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Ideal for printed circuit boards Typical IR less than 0.5 µA High case dielectric strength High surge current capability Solder Dip 260 °C, 40 seconds 2W005M thru 2W10M / 2W005G thru 2W10G Glass Passivated Single-Phase Bridge Rectifiers Reverse Voltage 50 to 1000 Volts Forward Current 2.0 Amperes Mechanical Data Case: WOB / WOG Epoxy meets UL-94V-0 Flammability rating Terminals: Silver plated (E4 Suffix) leads, solderable per J-STD-002B and JESD22-B102D Polarity: As marked on body Typical Appl.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2W10M-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 2W10G
Manufacturer GOOD-ARK
File Size 162.09 KB
Description Glass Passivated Single-Phase Bridge Rectifiers
Datasheet download datasheet 2W10G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2W10G GLASS PASSIVATED BRIDGE RECTIFIERS HY
2W10G Glass Passivated Single-Phase Bridge Rectifier Crownpo
2W10G Bridge Rectifier Formosa MS
2W10G SILICON GLASS PASSIVATED BRIDGE RECTIFIERS SEMTECH
2W10G 2.0A GLASS PASSIVATED BRIDGE RECTIFIER Diodes

Other Datasheets by GOOD-ARK

Part Number Description
2W10 Glass Passivated Single-Phase Bridge Rectifiers
2W10M Glass Passivated Single-Phase Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

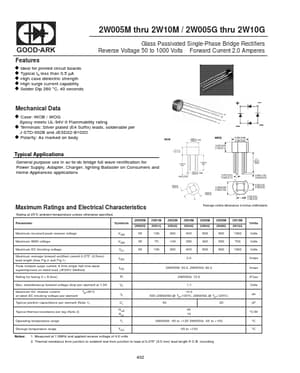

Features Ideal for printed circuit boards Typical IR less than 0.5 µA High case dielectric strength High surge current capability Solder Dip 260 °C, 40 seconds 2W005M thru 2W10M / 2W005G thru 2W10G Glass Passivated Single-Phase Bridge Rectifiers Reverse Voltage 50 to 1000 Volts Forward Current 2.0 Amperes Mechanical Data Case: WOB / WOG Epoxy meets UL-94V-0 Flammability rating Terminals: Silver plated (E4 Suffix) leads, solderable per J-STD-002B and JESD22-B102D Polarity: As marked on body Typical Applications General purpose use in ac-to-dc bridge full wave rectification for Power Supply, Adapter, Charger, lighting Ballaster on Consumers and Home Appliances applications Maximum Ratings and Electrical Characteristics Rating at 25oC ambient temperature unless otherwise specified.
