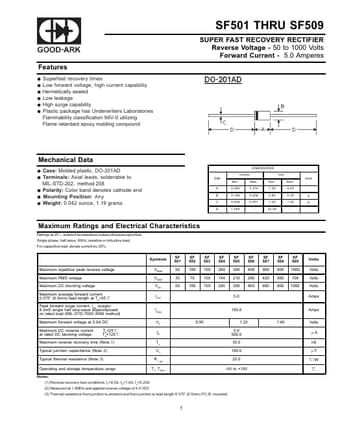

SF504, SF5 - SUPER FAST RECOVERY RECTIFIER

GOOD-ARK Electronics

Datasheet Details

Part number	SF504, SF5
Manufacturer	GOOD-ARK Electronics
File Size	174.94 KB
Description	SUPER FAST RECOVERY RECTIFIER
Datasheet	SF5-05.pdf
Note	This datasheet PDF includes multiple part numbers: SF504, SF5. Please refer to the document for exact specifications by model.

Superfast recovery times Low forward voltage, high current capability Hermetically sealed Low leakage High surge capability Plastic package has Underwriters Laboratories Flammability classification 94V-0 utilizing Flame retardant epoxy molding compound Mechanical Data Case: Molded plastic, DO-201AD Terminals: Axial leads, solderable to MIL-STD-202, method 208 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.042 ounce, 1.19 grams DIM.
