GB-1C - Subminiature Signal Relay

Download the GB-1C datasheet PDF. This datasheet also covers the GB-1A variant, as both devices belong to the same subminiature signal relay family and are provided as variant models within a single manufacturer datasheet.

Key Features

3A switching capability.
Standard PCB layout.
High sensitive:200mW.
High reliablity contact.
Outline Dimensions: (15.5×11×11.5）mm.

📥 Download Datasheet

GB-1C subminiature signal relay by GOLDEN RELAYS - Datasheet Preview — Note: The manufacturer provides a single datasheet file (GB-1A-GOLDENRELAYS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	GB-1C
Manufacturer	GOLDEN RELAYS
File Size	529.82 KB
Description	Subminiature Signal Relay
Datasheet	GB-1C Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
GB-IRM-8751	Infrared Receiver	Lucky Light Electronic
GB-IRM-8751-2F	Infrared Receiver	Lucky Light Electronic
GB-IRM-8751-2L	Infrared Receiver	Lucky Light Electronic
GB-IRM-8751-4F	Infrared Receiver	Lucky Light Electronic
GB-IRM-8751-4L	Infrared Receiver	Lucky Light Electronic

Other Datasheets by GOLDEN RELAYS

Part Number	Description
GB-1A	Subminiature Signal Relay

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

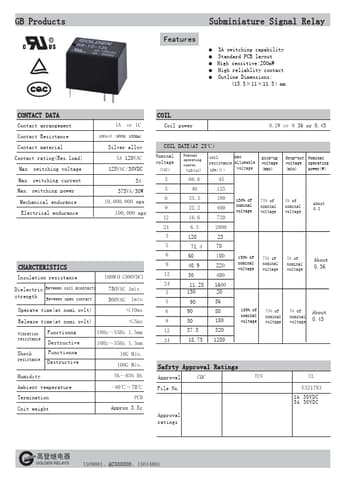

GB Products R C US Subminiature Signal Relay Features ● 3A switching capability ● Standard PCB layout ● High sensitive:200mW ● High reliablity contact ● Outline Dimensions: (15.5×11×11.5）mm CONTACT DATA Contact arrangement Contact Resistance Contact material Contact rating(Res.load) Max. switching voltage Max. switching current Max. switching power Mechanical endurance Electrical endurance 1A or 1C 100mΩ (6Vdc 100mA) Silver alloy 3A 120VAC 125VAC/30VDC 3A 375VA/30W 10,000,000 ops 100,000 ops CHARCTERISTICS Insulation resistance 100MΩ(500VDC) Dielectric Between coil &contacts strength Between open contact 750VAC 1min 500VAC 1min Operate time(at nomi.ovlt) ≤10ms Release time(at nomi.
