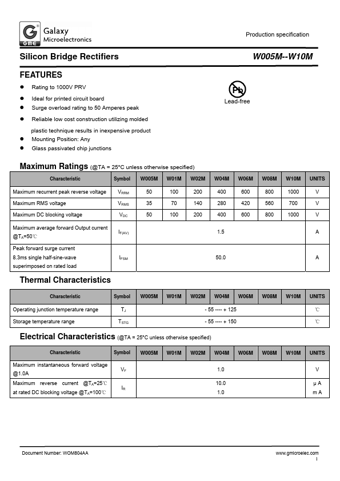

W06M - Silicon Bridge Rectifiers

GME

Datasheet Details

z Rating to 1000V PRV z Ideal for printed circuit board z Surge overload rating to 50 Amperes peak z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Mounting Position: Any z Glass passivated chip junctions Pb Lead-free Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol W005M W01M W02M W04M W06M W08M W10M UNITS Maximum recurrent peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V.
