TSM5S20A, TSM5S10A Transient Voltage Suppressor

GME

Description

Transient Voltage Suppressor Product specification TSM5S Series .

📥 Download Datasheet

TSM5S20A Datasheet Preview — This datasheet PDF includes multiple part numbers: TSM5S20A, TSM5S10A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TSM5S20A, TSM5S10A
Manufacturer: GME
File Size: 425.43 KB
Datasheet: TSM5S10A-GME.pdf
Description: Transient Voltage Suppressor
Note: This datasheet PDF includes multiple part numbers: TSM5S20A, TSM5S10A.
Please refer to the document for exact specifications by model.

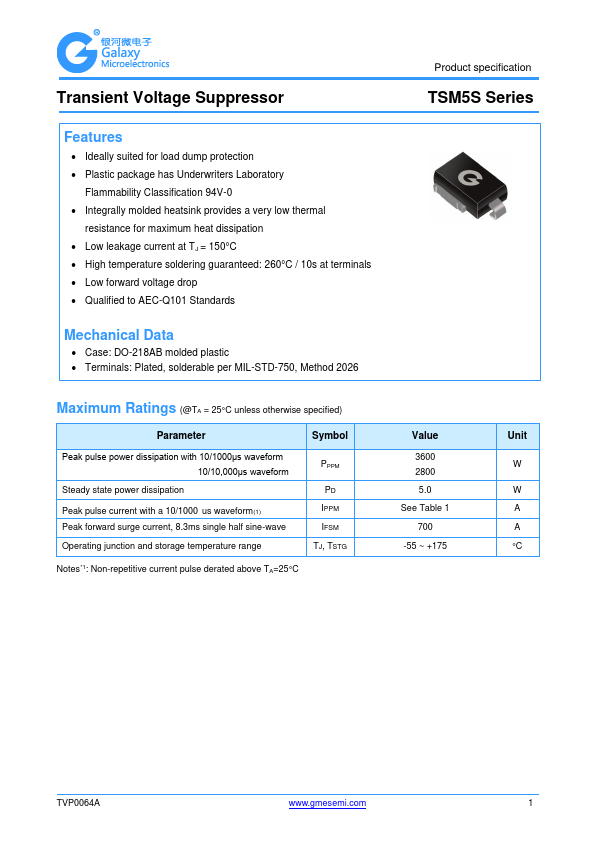

Features

* Ideally suited for load dump protection
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Integrally molded heatsink provides a very low thermal resistance for maximum heat dissipation
* Low leakage current at TJ = 150°C
* High temperature solder
