TSM5S13A, TSM5S10A Transient Voltage Suppressor

TSM5S13A Description

Transient Voltage Suppressor Product specification TSM5S Series .

TSM5S13A Features

* Ideally suited for load dump protection
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Integrally molded heatsink provides a very low thermal resistance for maximum heat dissipation
* Low leakage current at TJ = 150°C
* High temperature solder

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSM5S13A, TSM5S10A. Please refer to the document for exact specifications by model.

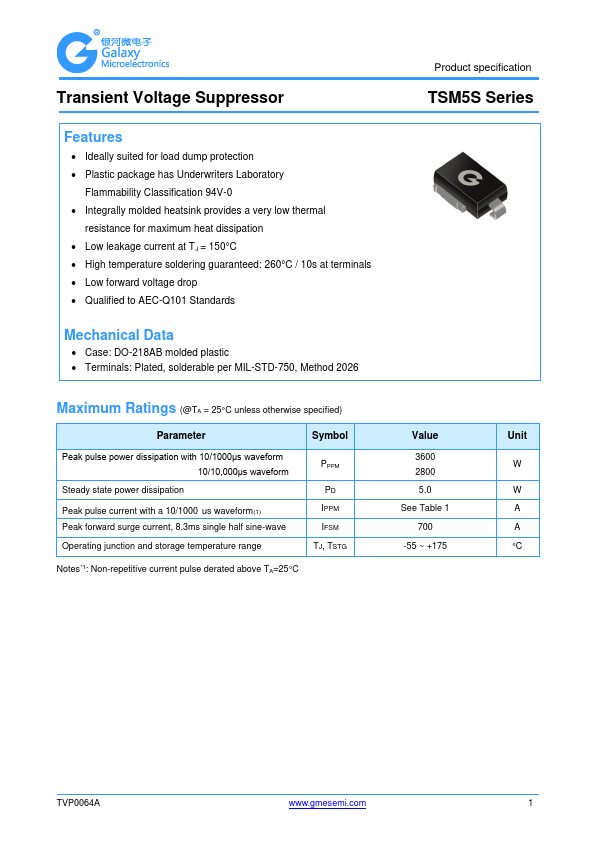

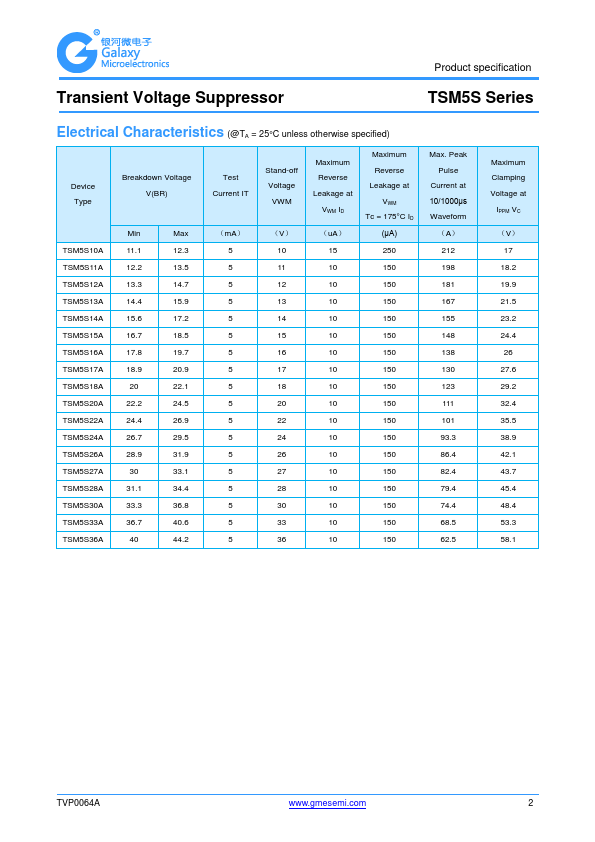

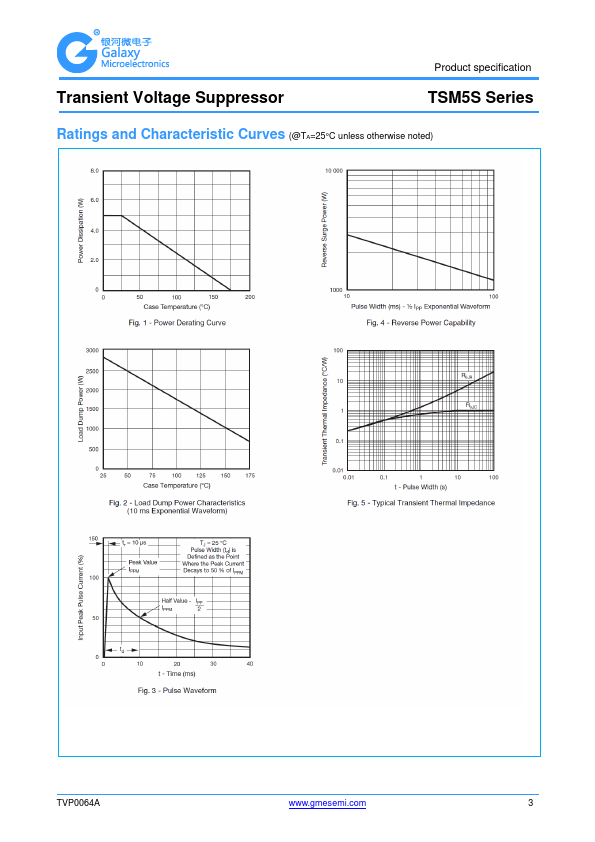

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSM5S13A, TSM5S10A
Manufacturer
GME
File Size
425.43 KB
Datasheet
TSM5S10A-GME.pdf
Description
Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: TSM5S13A, TSM5S10A.
Please refer to the document for exact specifications by model.
