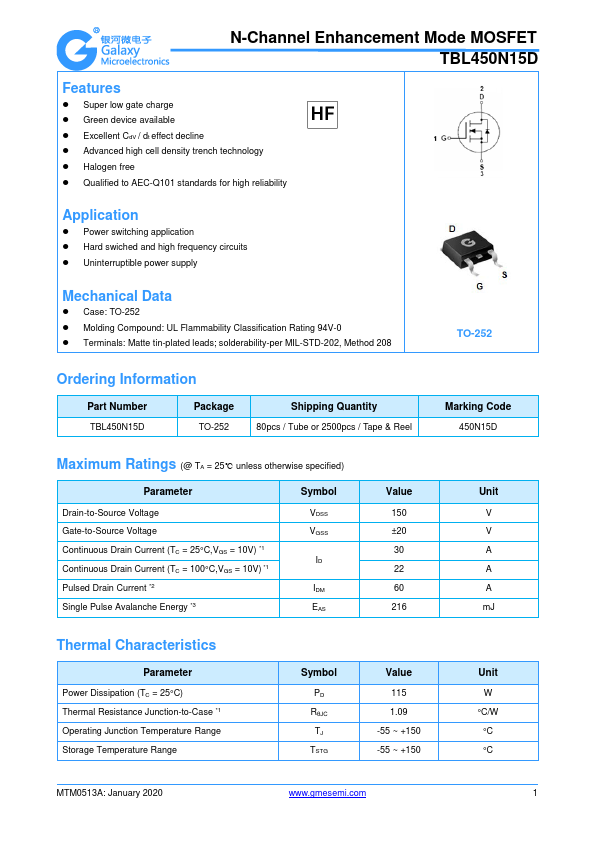

TBL450N15D
Features
- Super low gate charge
- Green device available
- Excellent Cd V / dt effect decline
- Advanced high cell density trench technology
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
Application
- Power switching application
- Hard swiched and high frequency circuits
- Uninterruptible power supply
Mechanical Data
- Case: TO-252
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
TO-252
Ordering Information
Part Number TBL450N15D
Package TO-252
Shipping Quantity 80pcs / Tube or 2500pcs / Tape & Reel
Marking Code 450N15D
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C,VGS = 10V)
- 1 Continuous Drain Current (TC = 100°C,VGS = 10V)
- 1 Pulsed Drain Current
- 2 Single Pulse Avalanche Energy
- 3
Symbol VDSS VGSS
IDM EAS
Value 150 ±20 30 22 60 216
Unit V V A A A m...
