SS54BF, SS52BF Schottky Barrier Rectifiers

SS54BF Description

Schottky Barrier Rectifiers Production specification SS52BF *SS545BF .

SS54BF Features

* Metal silicon junction, majority carrier conduction
* High surge capability
* High temperature soldering guaranteed: 260°C/10 seconds
* High current capability, low forward voltage drop
* Guarding for over voltage protection
* RoHS Compliant Mechanical Data
* Case: SMBF

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS54BF, SS52BF. Please refer to the document for exact specifications by model.

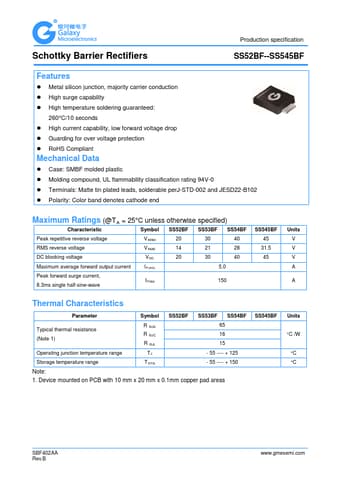

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS54BF, SS52BF
Manufacturer
GME
File Size
433.80 KB
Datasheet
SS52BF-GME.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SS54BF, SS52BF.
Please refer to the document for exact specifications by model.
