RS3GBF, RS3ABF Fast Recovery Rectifier

RS3GBF Description

Fast Recovery Rectifier Production specification RS3ABF *RS3GBF .

RS3GBF Applications

* Low profile package
* Low forward voltage drop
* High surge current capability
* RoHS Compliant Mechanical Data
* Case: SMBF molded plastic
* Molding compound, UL flammability classification rating 94V-0
* Terminals: Solder plated, solderable per MIL- STD-202,Method 208

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS3GBF, RS3ABF. Please refer to the document for exact specifications by model.

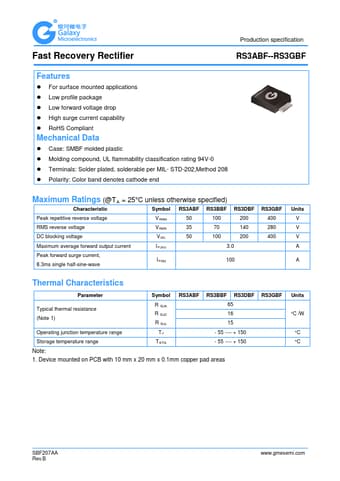

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS3GBF, RS3ABF
Manufacturer
GME
File Size
462.84 KB
Datasheet
RS3ABF-GME.pdf
Description
Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: RS3GBF, RS3ABF.
Please refer to the document for exact specifications by model.
