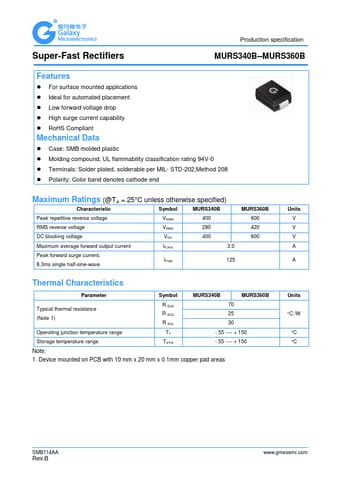

Super-Fast Rectifiers
Production specification
MURS340B--MURS360B
Features
For surface mounted applications Ideal for automated placement Low forward voltage drop High surge current capability RoHS Compliant
Mechanical Data
Case: SMB molded plastic Molding compound, UL flammability classification rating 94V-0 Terminals: Solder plated, solderable per MIL- STD-202,Method 208 Polarity: Color band denotes cathode end
Maximum Ratings (@TA = 25°C unless otherwise specified)
Characteristic
Symbol
MURS340B
Peak repetitive reverse voltage
VRRM
400
RMS reverse voltage
VRMS
280
DC blocking voltage
VDC 400
Maximum average forward output current
IF(AV)
3.0
Peak forward surge current, 8.
