MMDT2222A - Dual NPN Small Signal Surface Mount Transistor

Features

  • Epitaxial planar die construction.
  • Complementary PNP type available MMDT2907A.
  • Ultra-small surface mount package. Pb Lead-free.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMDT2222A Dual NPN Transistor GOOD-ARK
MMDT2222A 40V DUAL NPN SMALL SIGNAL TRANSISTOR Diodes Incorporated
MMDT2222A DUAL SURFACE MOUNT NPN TRANSISTORS PAN JIT
MMDT2222A NPN Plastic-Encapsulate Transistors MCC
MMDT2222A Dual NPN Small Signal Surface Mount Transistor Bruckewell

Other Datasheets by Galaxy Microelectronics

Part Number Description
MMDT2227 Small Surface Mount Transistor
MMDT2907A Dual PNP Small Signal Surface Mount Transistor
MMDT3904 Dual NPN Small Signal Surface Mount Transistor
MMDT3906 Dual PNP Small Signal Surface Mount Transistor
MMDT3946 Small Surface Mount Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

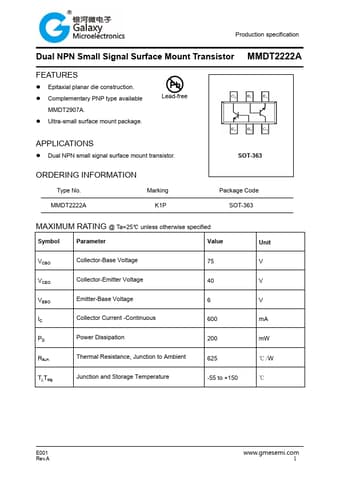

Production specification Dual NPN Small Signal Surface Mount Transistor MMDT2222A FEATURES  Epitaxial planar die construction.  Complementary PNP type available MMDT2907A.  Ultra-small surface mount package. Pb Lead-free APPLICATIONS  Dual NPN small signal surface mount transistor. ORDERING INFORMATION Type No. Marking MMDT2222A K1P SOT-363 Package Code SOT-363 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC PD RθJA Tj,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Power Dissipation Thermal Resistance, Junction to Ambient Junction and Storage Temperature 75 40 6 600 200 625 -55 to +150 Unit V V V mA mW ℃/W ℃ E001 Rev.A www.gmesemi.
