DF1508S, DF150S - SILICON BRIDGE RECTIFIERS

Datasheet Details

Part number	DF1508S, DF150S
Manufacturer	GME
File Size	140.44 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	DF150S-GME.pdf
Note	This datasheet PDF includes multiple part numbers: DF1508S, DF150S. Please refer to the document for exact specifications by model.

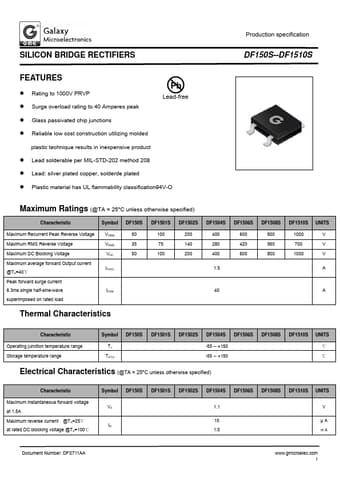

z Rating to 1000V PRVP z Surge overload rating to 40 Amperes peak Pb Lead-free z Glass passivated chip junctions z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 z Lead: silver plated copper, solderde plated z Plastic material has UL flammability classification94V-O Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol DF150S Maximum Recurrent Peak Reverse Voltage Max.
