DB107S - Silicon Bridge Rectifiers

Download the DB107S datasheet PDF. This datasheet also covers the DB104S variant, as both devices belong to the same silicon bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass passivated junction.
  • High surge current capability.
  • Saves space on printed circuit boards.
  • High temperature soldering guaranteed: 260°C/10 seconds Mechanical Data.
  • Case: Molded plastic body RoHS-compliant.
  • Molding compound meets UL 94 V-0 flammability rating.
  • Terminals: Lead Free Plating (Matte Tin Finish. ).
  • Polarity indicator: As marked on body Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol DB104S DB105S DB106S Pe.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DB104S-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DB107S SMD Bridge Rectifier Formosa MS
DB107S Miniature Glass Passivated Single-Phase Bridge Rectifiers GOODARK
DB107S SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER Kingtronics
DB107S SINGLE-PHASE SILICON BRIDGE RECITFIER Dc Components
DB107S SILICON BRIDGE RECTIFIER Rectron

Other Datasheets by Galaxy Microelectronics

Part Number Description
DB107 Silicon Bridge Rectifiers
DB104 Silicon Bridge Rectifiers
DB104S Silicon Bridge Rectifiers
DB105 Silicon Bridge Rectifiers
DB105S Silicon Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

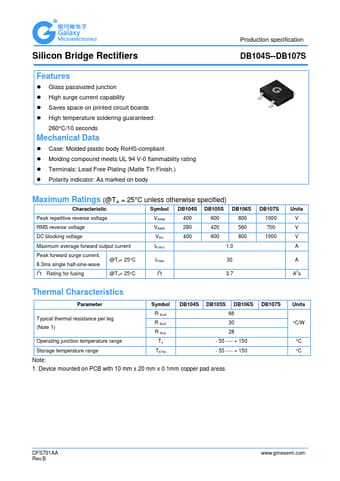

Silicon Bridge Rectifiers Production specification DB104S--DB107S Features  Glass passivated junction  High surge current capability  Saves space on printed circuit boards  High temperature soldering guaranteed: 260°C/10 seconds Mechanical Data  Case: Molded plastic body RoHS-compliant  Molding compound meets UL 94 V-0 flammability rating  Terminals: Lead Free Plating (Matte Tin Finish.)  Polarity indicator: As marked on body Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol DB104S DB105S DB106S Peak repetitive reverse voltage VRRM 400 600 800 RMS reverse voltage VRMS 280 420 560 DC blocking voltage VDC 400 600 800 Maximum average forward output current IF(AV) 1.0 Peak forward surge current, 8.
