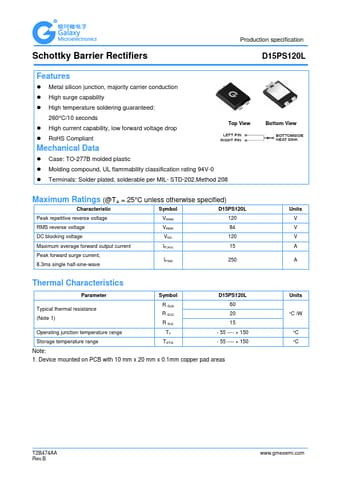

Schottky Barrier Rectifiers
Production specification
D15PS120L
Features
Metal silicon junction, majority carrier conduction
High surge capability
High temperature soldering guaranteed:
260°C/10 seconds High current capability, low forward voltage drop
Top View
RoHS Compliant
Mechanical Data
Case: TO-277B molded plastic
Molding compound, UL flammability classification rating 94V-0
Terminals: Solder plated, solderable per MIL- STD-202,Method 208
Bottom View
Maximum Ratings (@TA = 25°C unless otherwise specified)
Characteristic
Symbol
D15PS120L
Peak repetitive reverse voltage
VRRM
120
RMS reverse voltage
VRMS
84
DC blocking voltage
VDC 120
Maximum average forward output current
IF(AV)
15
Peak forward surge current, 8.
