D15PS100 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Download the D15PS100 datasheet PDF (D15PS20 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount schottky barrier rectifiers.

Features

  • z Super long operating life z Plastic package has Underwriters Laboratory Flammability Classification 94V-0.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (D15PS20-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • D15-11 - Wide Input Range DC-DC Converter (FranMar)
  • D15-12 - Wide Input Range DC-DC Converter (FranMar)
  • D15-13 - Wide Input Range DC-DC Converter (FranMar)
  • D15-14 - Wide Input Range DC-DC Converter (FranMar)
  • D15-15 - Wide Input Range DC-DC Converter (FranMar)
  • D15-16 - Wide Input Range DC-DC Converter (FranMar)
  • D15-19 - Wide Input Range DC-DC Converter (FranMar)
  • D15-21 - Wide Input Range DC-DC Converter (FranMar)
  • D15-22 - Wide Input Range DC-DC Converter (FranMar)
  • D15-23 - Wide Input Range DC-DC Converter (FranMar)
Other Datasheets by GME
  • D15PS100L - SCHOTTKY BARRIER RECTIFIERS
  • D15PS120L - SCHOTTKY BARRIER RECTIFIERS
  • D15PS150L - SCHOTTKY BARRIER RECTIFIERS
  • D15PS20 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • D15PS30 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • D15PS40 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • D15PS45 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • D15PS45L - SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription

Click to expand full text

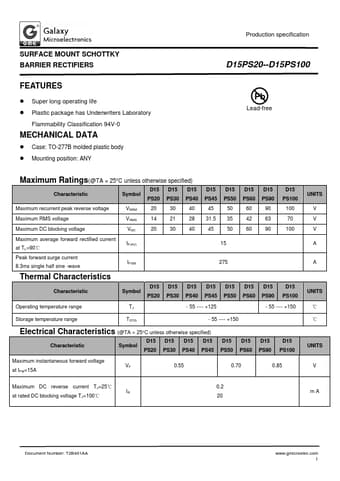

Production specification SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS D15PS20--D15PS100 FEATURES z Super long operating life z Plastic package has Underwriters Laboratory Flammability Classification 94V-0 MECHANICAL DATA z Case: TO-277B molded plastic body z Mounting position: ANY Pb Lead-free Maximum Ratings(@TA = 25°C unless otherwise specified) Characteristic D15 D15 D15 D15 D15 D15 D15 Symbol PS20 PS30 PS40 PS45 PS50 PS60 PS90 Maximum recurrent peak reverse voltage VRRM 20 30 40 45 50 60 90 Maximum RMS voltage VRMS 14 21 28 31.5 35 42 63 Maximum DC blocking voltage VDC 20 30 40 45 50 60 90 Maximum average forward rectified current at TL=90℃ Peak forward surge current 8.
