BYG21M, BYG21K - Fast Recovery Rectifier

BYG21M Description

Fast Recovery Rectifier Product specification BYG21K - BYG21M .

BYG21M Features

* Low forward voltage drop
* High forward surge current capability
* Low-profile SMD ideal for automated manufacturing
* RoHS compliant with Halogen-free Mechanical Data
* Case: SMA molded plastic
* Molding compound, UL flammability classification rating 94V-0
* Terminals

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BYG21M, BYG21K. Please refer to the document for exact specifications by model.

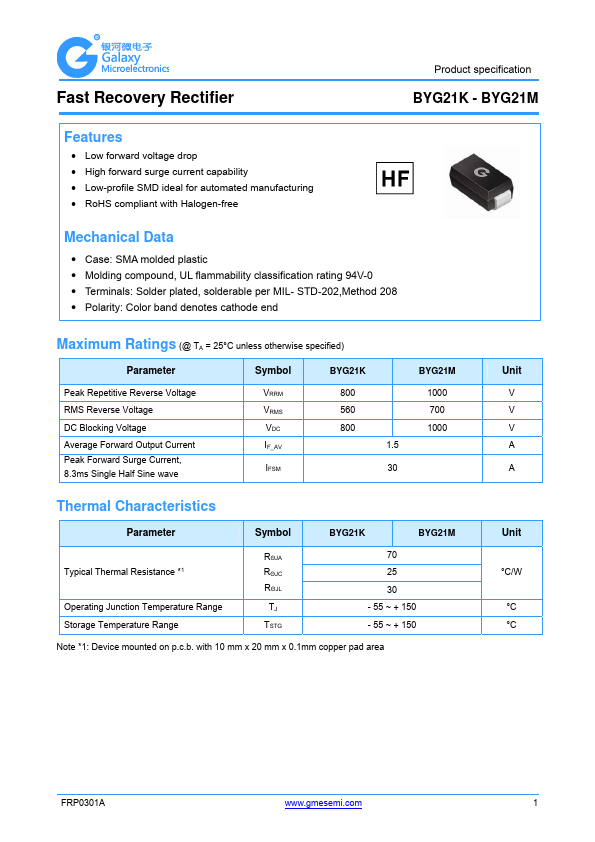

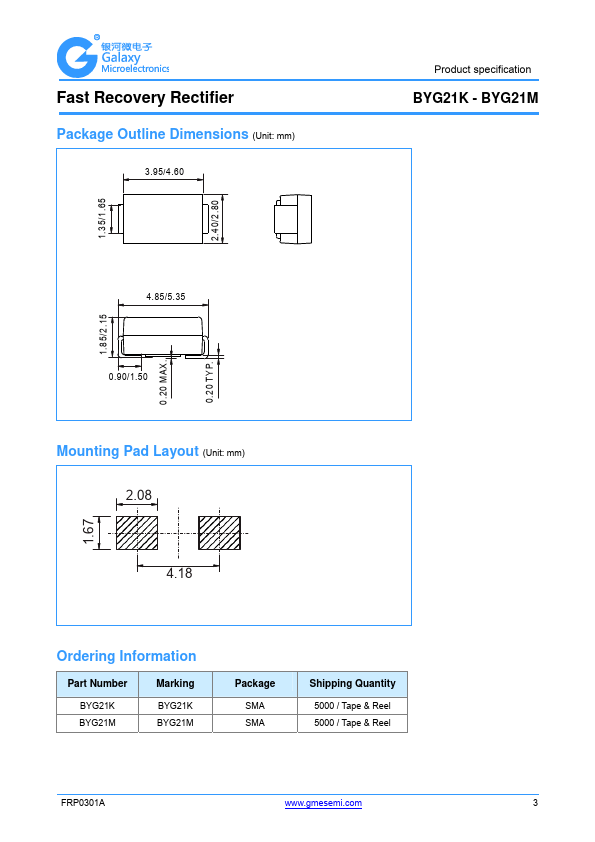

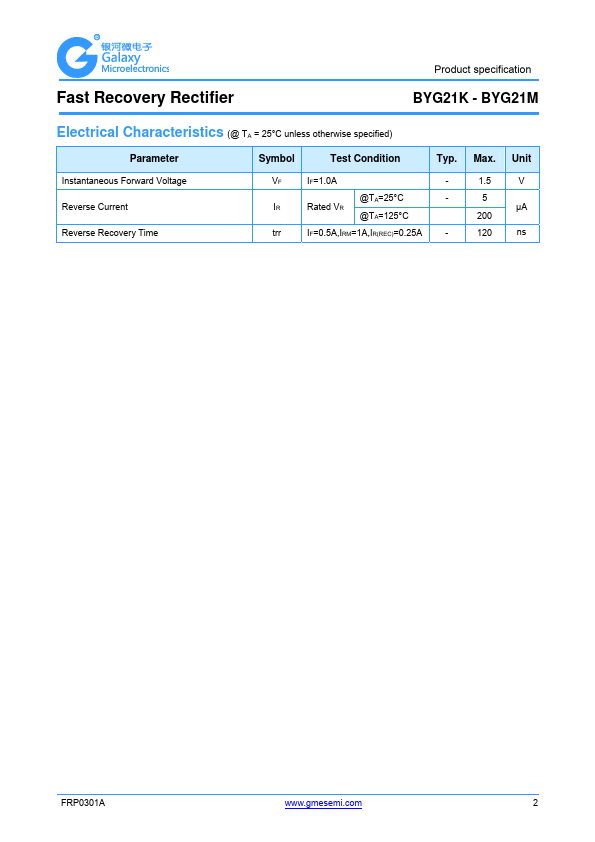

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BYG21M, BYG21K
Manufacturer
GME
File Size
115.88 KB
Datasheet
BYG21K-GME.pdf
Description
Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: BYG21M, BYG21K.
Please refer to the document for exact specifications by model.
