BF822 - NPN High-Voltage Transistors

Download the BF822 datasheet PDF. This datasheet also covers the BF820 variant, as both devices belong to the same npn high-voltage transistors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low current(max.50mA).
  • High voltage(max.300V).
  • Complements:BF821,BF823. Pb Lead-free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BF820-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BF822 NPN high-voltage transistors NXP
BF822 Small Signal Transistors General Semiconductor
BF822 NPN Transistor JCET
BF822 NPN High-Voltage Transistors Kexin
BF822 SILICON EPITAXIAL TRANSISTORS CDIL

Other Datasheets by Galaxy Microelectronics

Part Number Description
BF820 NPN High-Voltage Transistors
BF821 PNP High-Voltage Transistors
BF823 PNP High-Voltage Transistors

Full PDF Text Transcription

Click to expand full text

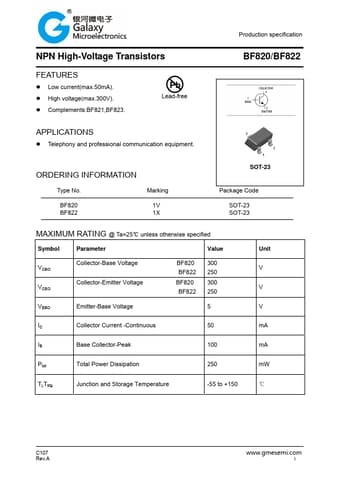

NPN High-Voltage Transistors FEATURES  Low current(max.50mA).  High voltage(max.300V).  Complements:BF821,BF823. Pb Lead-free APPLICATIONS  Telephony and professional communication equipment. Production specification BF820/BF822 ORDERING INFORMATION Type No. Marking BF820 BF822 1V 1X SOT-23 Package Code SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO Collector-Base Voltage Collector-Emitter Voltage BF820 BF822 BF820 BF822 300 250 300 250 VEBO Emitter-Base Voltage 5 IC Collector Current -Continuous 50 IB Base Collector-Peak 100 Ptot Total Power Dissipation 250 Tj,Tstg Junction and Storage Temperature -55 to +150 Unit V V V mA mA mW ℃ C107 Rev.A www.gmesemi.
