BCX18, BCX17 PNP Transistor

BCX18 Description

Production specification PNP General Purpose Transistor .

BCX18 Applications

* z Saturated switching and driver applications e. g. for Industrial service. z Thick and thin-film circuits ORDERING INFORMATION Type No. Marking BCX17 BCX18 T1 T2 SOT-23 Package Code SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BCX18, BCX17. Please refer to the document for exact specifications by model.

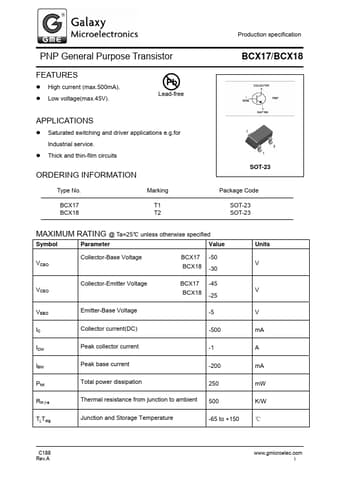

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCX18, BCX17
Manufacturer
GME
File Size
125.79 KB
Datasheet
BCX17-GME.pdf
Description
PNP Transistor
Note
This datasheet PDF includes multiple part numbers: BCX18, BCX17.
Please refer to the document for exact specifications by model.
