BCW71 NPN General Purpose Amplifier

BCW71 Description

NPN General Purpose Amplifier .

BCW71 Applications

* z General purpose switching and amplification. z For Complementary with PNP Type BCW69/70. Production specification BCW71/BCW72 ORDERING INFORMATION Type No. Marking BCW71 BCW72 K1 K2 SOT-23 Package Code SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Val

📥 Download Datasheet

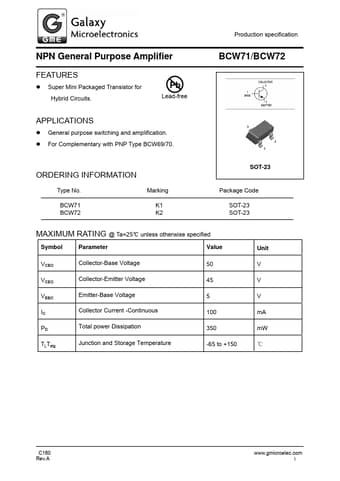

Preview of BCW71 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCW71
Manufacturer
GME
File Size
188.91 KB
Datasheet
BCW71-GME.pdf
Description
NPN General Purpose Amplifier
