2SC3420 - NPN Transistor

GME

The 2SC3420 by GME is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

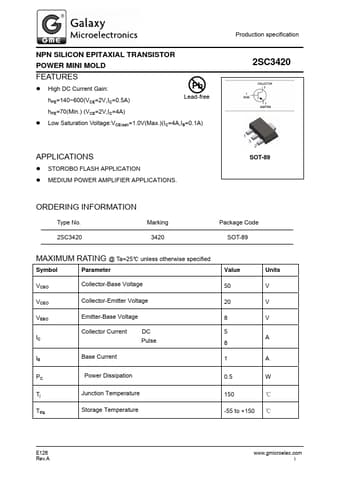

2SC3420 NPN Transistor by GME - Datasheet Preview — Official preview page of the 2SC3420 NPN Transistor datasheet (GME).

Datasheet Details

Part number	2SC3420
Manufacturer	GME
File Size	182.17 KB
Description	NPN Transistor
Datasheet	2SC3420-GME.pdf
Additional preview pages of the 2SC3420 datasheet.

2SC3420 Product details

Features

z High DC Current Gain: hFE=140~600(VCE=2V,IC=0.5A) Pb Lead-free hFE=70(Min. ) (VCE=2V,IC=4A) z Low Saturation Voltage:VCE(sat)=1.0V(Max. )(IC=4A,IB=0.1A) Production specification 2SC3420.
