HV37-20F - Fast Recovery High Voltage Silicon Rectifier Diode

HV37-20F Description

HV37-20F 200mA 20kV 80nS Fast Recovery High Voltage Silicon Rectifier Diode * * * * * * * *.

HV37-20F Applications

* 1. Rectifier for high voltage power supply. 2. General purpose high voltage rectifier. . 3. Rectification for X-ray generator high voltage power supply. MECHANICAL DATA: 1. Case: epoxy resin molding. 2. Terminal: welding axis. 3. Net weight: 0.65 grams (approx). MAXIMUM RATINGS AND CHARACT

📥 Download Datasheet

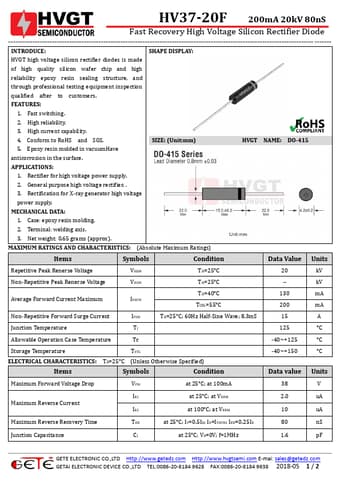

Preview of HV37-20F PDF
datasheet Preview Page 2

Datasheet Details

Part number
HV37-20F
Manufacturer
GETE
File Size
468.69 KB
Datasheet
HV37-20F-GETE.pdf
Description
Fast Recovery High Voltage Silicon Rectifier Diode
