P10C68

The P10C68 is CMOS / SNOS NVSRAM designed by GEC Plessey Semiconductors.

Product Overview

GEC Plessey Semiconductors

Part number	P10C68
Manufacturer	GEC Plessey Semiconductors
File Size	176.47 KB
Description	CMOS / SNOS NVSRAM
Datasheet	P10C68_GECPlesseySemiconductors.pdf

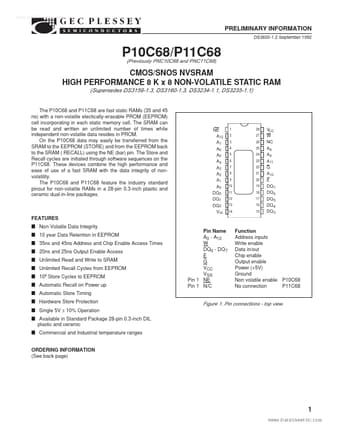

Additional preview pages of the P10C68 datasheet.

I Non-Volatile Data Integrity I 10 year Data Retention in EEPROM I 35ns and 45ns Address and Chip Enable Access Times I 20ns and 25ns Output Enable Access I Unlimited Read and Write to SRAM I Unlimited Recall Cycles from EEPROM I 104 Store Cycles to EEPROM I Automatic Recall on Power up I Automatic Store Timing I Hardware Store Protection I Single 5V ± 10% Operation I Available in Standard Package 28-pin 0.3-inch DIL plastic and ceramic I Commercial and Industrial temperature ranges.
