GE13081P - NPN POWER TRANSISTOR

Download the GE13081P datasheet PDF. This datasheet also covers the GE13080P variant, as both devices belong to the same npn power transistor family and are provided as variant models within a single manufacturer datasheet.

Features

  • SWitching regulators.
  • Inverters.
  • Solenoid and relay drivers.
  • Motor controls.
  • Deflection circuits Fast Turn-Off Times: 100 ns inductive fall time @ 25°C (Typ) 150 ns inductive crossover time @ 25°C (Typ) 400 ns inductive storage time @ 25°C (Typ) Operating temperature range -65 to +150°C 100° C Performance Specified for: Switching times with inductive loads Saturation voltages Leakage cu rrents NPN.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GE13080P-GE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GE13081P
Manufacturer GE
File Size 152.41 KB
Description NPN POWER TRANSISTOR
Datasheet download datasheet GE13081P Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GE13003 NPN SILICON POWER TRANSISTOR GTM
GE13005 NPN SILICON TRIPLE DIFFUSED MESA TYPE TRANSISTOR GTM
GE13007 NPN SILICON TRIPLE DIFFUSED MESA TYPE TRANSISTOR GTM
GE1046 PNP EPITAXIAL PLANAR TRANSISTOR GTM
GE1084 5A Low Dropout Positive Adjustable GTM

Other Datasheets by GE

Part Number Description
GE13081T NPN POWER TRANSISTOR
GE13080P NPN POWER TRANSISTOR
GE13080T NPN POWER TRANSISTOR
GE13070P NPN POWER TRANSISTOR
GE13071P NPN POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

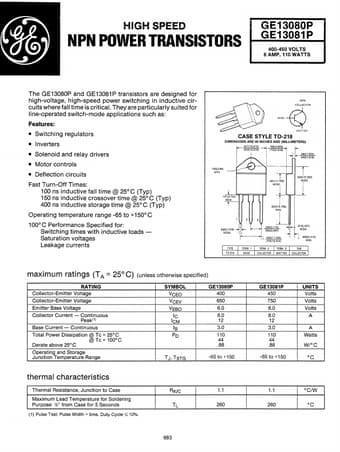

HIGH SPEED NPN POWER TRANSISTORS GE13080P GE13081P 400·450 VOLTS 8 AMP, 110 WATTS The GE13080P and GE13081P transistors are designed for high-voltage, high-speed power switching in inductive circuits where fall time is critical.
