D76A5D - NPN POWER TRANSISTOR

D76A5D Description

NPN POWER DARLINGTON TRANSISTOR ARRAY D76ASD 100 VOLTS 5 AMP, 4 WATTS Designed for high power switching applications, hammer drive, pulse motor driv.

D76A5D Features

* High reliability small-sized available (4 in 1)
* Epoxy single-inline package (10 pin)
* High collector power dissipation: Po = 4W @ TA = 25°C (Four device action)
* High collector current: IC =5A (Max. )
* High DC current gain: hFE = 2000 (Min. ) @ VCE = 3V,

📥 Download Datasheet

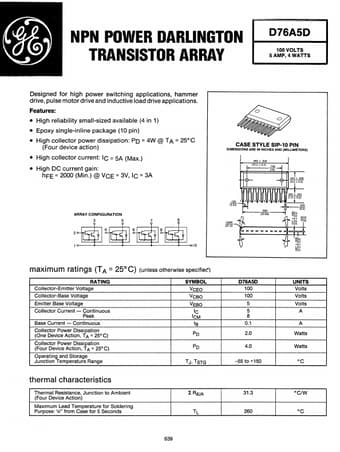

Preview of D76A5D PDF
datasheet Preview Page 2

Datasheet Details

Part number
D76A5D
Manufacturer
GE
File Size
113.22 KB
Datasheet
D76A5D-GE.pdf
Description
NPN POWER TRANSISTOR
