D66GV7 - NPN POWER TRANSISTORS

Download the D66GV7 datasheet PDF. This datasheet also covers the D66GV5 variant, as both devices belong to the same npn power transistors family and are provided as variant models within a single manufacturer datasheet.

Features

  • the D66 Package offering: collector isolation from heat sink, TO-3 mounting compatibility and quick-connect terminals. . The D66GV also features a discrete fast recovery antiparallel high power diode which eliminates the need for an external flyback diode in motor control and other inverter.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (D66GV5-GE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number D66GV7
Manufacturer GE
File Size 268.57 KB
Description NPN POWER TRANSISTORS
Datasheet download datasheet D66GV7 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
D66GV750 Fast Switching Single Darlington Transistor Module Powerex Power Semiconductors
D66GV Fast Switching Single Darlington Transistor Module Powerex Power Semiconductors
D66GV5 Fast Switching Single Darlington Transistor Module Powerex Power Semiconductors
D66GV550 Fast Switching Single Darlington Transistor Module Powerex Power Semiconductors
D66GV650 Fast Switching Single Darlington Transistor Module Powerex Power Semiconductors

Other Datasheets by GE

Part Number Description
D66GV5 NPN POWER TRANSISTORS
D66GV6 NPN POWER TRANSISTORS
D66DS5 NPN POWER TRANSISTORS
D66DS6 NPN POWER TRANSISTORS
D66DS7 NPN POWER TRANSISTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

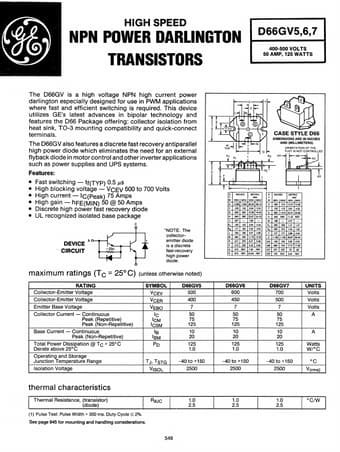

HIGH SPEED NPN POWER DARLINGTON TRANSISTORS D66GV5,6,7 400-500 VOLTS 50 AMP, 125 WATTS The D66GV is a high voltage NPN high current power darlington especially designed for use in PWM applications where fast and efficient switching is required. This device utilizes GE's latest advances in bipolar technology and features the D66 Package offering: collector isolation from heat sink, TO-3 mounting compatibility and quick-connect terminals. . The D66GV also features a discrete fast recovery antiparallel high power diode which eliminates the need for an external flyback diode in motor control and other inverter applications such as power supplies and UPS systems. Features: • Fast switching - tf{TVP) 0.5 f.
