D66DS5 - NPN POWER TRANSISTORS

D66DS5 Description

HIGH POWER NPN POWER DARLINGTON TRANSISTORS D66D85,6,7 D66ES5,6,7 500-700 VOLTS 20 AMP, 62.5 WATTS The General Electric D66DS/D66ES are high current.

D66DS5 Features

* High Voltage: 400-500 VCEO
* High Current: 30 Amperes, Ie (Peak)

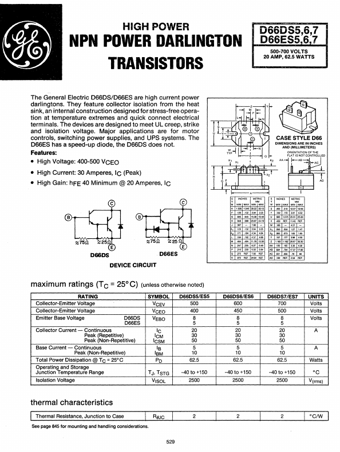

* High Gain: hFE 40 Minimum @ 20 Amperes, Ie © ~15n E D66DS . D66ES DEVICE CIRCUIT 1iITI t!i02~@l. :tlr ~~+ E l1 !. - ( @ I .1 ,T. T~IP~: ~ CASE STYLE 066 DIMENSIONS ARE IN INCHES AND (MILLIMETERS) ORIEN
